Radio Frequency Synthesizer Circuit Diagram A frequency synthesizer uses phase-locked loop (PLL) to generate output frequencies over a wide range. The typical range is from 1 MHz to 160 MHz. Fig: Block diagram of a frequency synthesizer. As illustrated in the block diagram above, the key components of the frequency synthesizer are: Crystal oscillator; Phase detector; Low-pass filter
the design of a frequency synthesizer in a transceiver environment, from the mapping of standard-specifications to its integrated circuit implementation in a CMOS technology. The results show that careful system level planning leads to high-performance realizations of the synthesizer. A strategy of using different supply voltages to enhance The heart of this frequency synthesiser is the "Adafruit Si5351A Clock Generator Breakout Board" which can generate up to three outputs in the frequency range of 8KHz to 160MHz. The Si5351 breakout board is designed to run off 5 volts and has an I2C interface which makes it easy to connect to an Arduino.

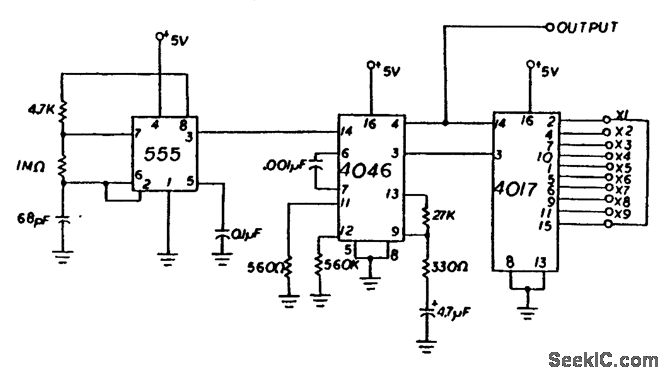

Block Diagram of Frequency Synthesizer using PLL: Circuit Diagram
a reference frequency fref, the division ratios of N and R, and the frequency fmix, applied to the mixer to down-convert the signal; the resulting output frequency, f out, will be out fref fmix R N f + = โ Equ. 4 The main benefit of this method is the improved noise performance due to the reduced division in the loop. Loop Filter Design High Speed Communication Circuits and Systems Lecture 18 Design and Simulation of Frequency Synthesizers Michael H. Perrott April 9, 2004 M.H. Perrott Outline Closed-Loop Design of Frequency Synthesizers-Introduction-Background on Classical Open Loop Design Approach-Closed Loop Design Approach-Example and Verification-Conclusion
The actual design is best done with the computer program. A more complex filter as an application is shown in Figure 4. Fig. 4 โ Phase/frequency comparator and loop for the 72 to 92 MHz frequency synthesizer. A detailed overview on how to design a synthesizer is found in the book, Microwave and Wireless Synthesizers: Theory and Design, 2:00 - 3:30 RF front-end design - LNA, mixer 4:00 - 5:30 Frequency synthesizer design I (PLL) T d J l 22 2008Tuesday, July 22, 2008 9:00 - 10:30 Frequency synthesizer design II (VCO) 11:00 - 12:30 RFIC design for wireless communications 2:00 - 3:30 Analog and mixed signal testing Frequency synthesizer design I (PLL), FDAI, 2008 2
Features, Operation & Applications Circuit Diagram
The synthesizer that we will be designing was extremely common back in the day. It's known as a 1V/Octave synthesizer. This means that for every 1V increase on the input, the output frequency will go up by one octave (i.e., by a factor of 2). Now for this module to work correctly, it needs an exponential converter on the input.
